IEC 62196 Electric Vehicle Connector Gauge A and B for Checking Shutters

Name: IEC 62196 Electric Vehicle Connector Gauge A and B for Checking Shutters
Brand: Sinuo
Price: 1 USD

China IEC 62196 Electric Vehicle Connector Gauge A and B for Checking Shutters wholesale

Brand Name : Sinuo

Model Number : SN2110

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Delivery Time : 8 days

Price : Customized

Supply Ability : 90 Sets / Month

Packaging Details : Export package

Applied Standard : IEC 62196-1 Ed.4 CDV 2020

Applied Clause : Clause 10.2.

Applied Figure : Figure 9 and figure 10.

Warranty Time : One year

SN2110B Force : 1N

SN2110A Force : 20N

SN2110A Runded : R0.2 ±0.05

SN2110B Rounded : R0.05

Contact Now

IEC 62196 Electric Vehicle Connector Gauge A and B for Checking Shutters

Complied Standards & Clauses

IEC 62196-1Ed.4CDV 2020 clause 10.2, figure 9 and figure 10.

Equipment Overview

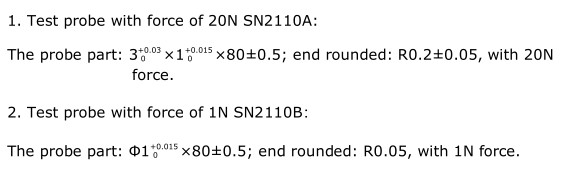

These two test probes separately confirm to the IEC 62196-1Ed.4CDV 2020 clause 10.2, figure 9 and figure 10. The SN2110A test probe with 20N force and the SN2110B test probe with 1N force.

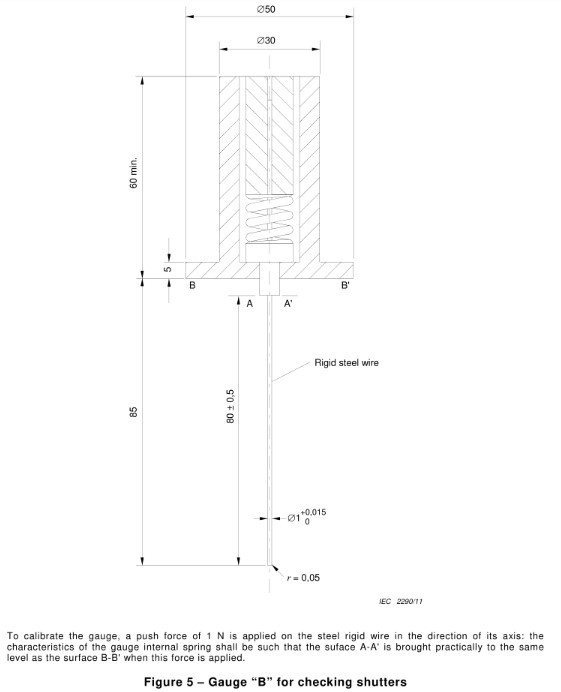

Touching the specimen with the end of the probe and then respectively exert the force of 20N or 1N until the probe is bulged and the A-A surface is abreast with the B-B surface.

Technical Parameters

Applied Standards	IEC 62196-1 Ed.4 CDV 2020
Applied Clauses	Clause 10.2.
Applied Figure	Figure 9 and figure 10.
Warranty Time	One year
SN2110B Force	1N
SN2110A Force	20N
SN2110A Runded	R0.2 ±0.05
SN2110B Rounded	R0.05

Details:

IEC 62196 Electric Vehicle Connector Gauge A and B for Checking Shutters
