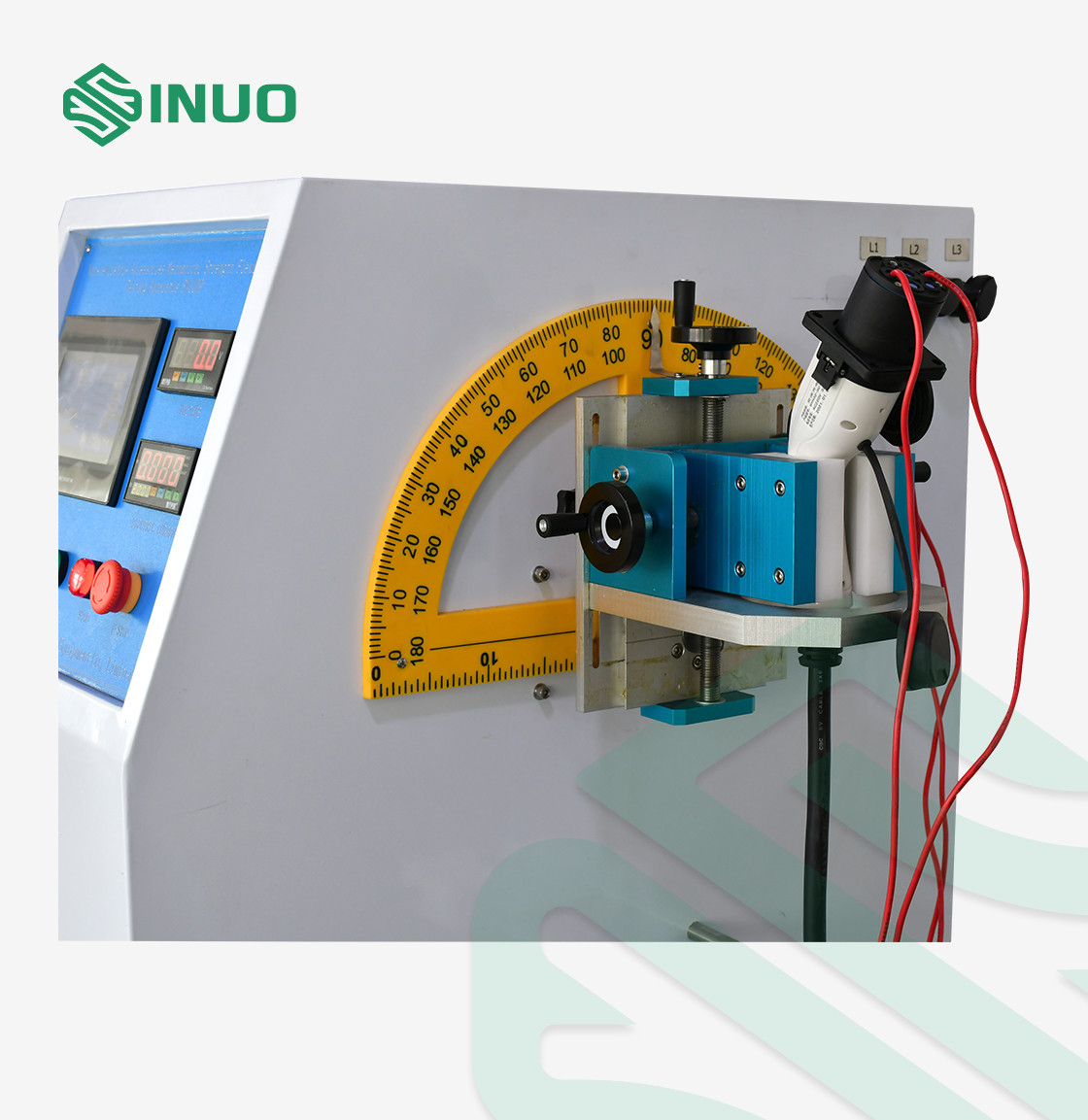

IEC62196 Electric Vehicle Non-Rewireable Accessories Mechanical Strength Flexing Testing Apparatus
Complied Standards & Clauses
IEC 62196-1Ed.4CDV: 2020 "Plugs, Socket - Outlets and Couplers for Industrial and Similar Applications, and For Electric Vehicles" clause 26.4, fig 20.
IEC60309-1: 2012 clause 24.4 figure 9.
Equipment Overview
The flexibility testing apparatus is designed and manufactured according to requirements of IEC62196-1: 2020 clause 26.4 figure 20, IEC60309-1: 2012 clause 24.4 figure 9, etc. It is used to process the mechanical load flexing test of the vehicle plugs, socket-outlets and couplers non-rewireable accessories.
The equipment adopts PLC control and operated by 7-inch colour human-machine interface, uses a servo motor to control the flexing angle. The flexing angle, flexing speed and the test cycles can be preset on touch screen. The test is automatically carried out according to the set parameters. When the test times reach the preset number of test times, the device automatically stops and gives the test completion signal prompt. The test equipment has the advantages of high-precision digital display, high-efficiency digital frequency conversion, precise speed adjustment, six-digit memory setting, multi-function modular fixture, rotating center centering measuring tool, and built-in load which can supply load voltage to test sample during test.
Technical Parameters
| Test Station | Single |
| Electrical Control Method | PLC intelligent integrated control, 7-inch humanized touch interface operation |
| Drive Mode | Servo motor |
| Sample Clamping Method | Mechanical clamping, the position of clamping point is adjustable |
| Flexing Angle | 0-360° can be adjusted freely (default 90°, 45°on either side of the vertical) |
| Flexing Rate | 0-60 cycles / min, can be preset |
| Flexing Cycles | 0~999999 can be preset, default 20000 cycles |
| Load Weights | 20N, 25N, 50N, 75N, 100N |
| Load Power | Built-in, with adjustable phase voltage between conductors 0-250V and current AC0-400A adjustable |
| Test Judgment | Judging by the signals given when the current is conducted or not |
| Equipment Dimensions & Weight | L 850mm *W 800mm *H 1500mm, the whole machine is about 200Kg |
| Power Supply | Three phase AC380V±10%, 50Hz |
Questions & Answers
Q: What is the Flexing Angle?
A: It is 0-360° can be adjusted freely (default 90°, 45°on either side of the vertical).
Q: What are the size for this device?
A: The size of the device is L 850mm *W 800mm *H 1500mm, the whole machine is about 200Kg.
