EV Connector Testing Equipment AC/DC Anti-Shock Probe Experiment Device

Name: EV Connector Testing Equipment ACDC AntiShock Probe Experiment Device
Brand: Sinuo
Price: 1 USD

China EV Connector Testing Equipment AC/DC Anti-Shock Probe Experiment Device wholesale

Brand Name : Sinuo

Model Number : SN2210-19A

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 30 Sets / Month

Delivery Time : 5 days

Packaging Details : Export package

Complied Clause : Clause 10.1, 26.6.

Applied Standard : IEC 62196-1 Ed.4 CDV 2020

Output Voltage : AC40-50V

Working Voltage : AC 220V±5%, 50HZ±1%

Temperature Range : 0-40℃

Use Requirements : No shaking and no corrosive gas

Alarm Type : Sound alarm

Relative Humidity : ≤80%

Contact Now

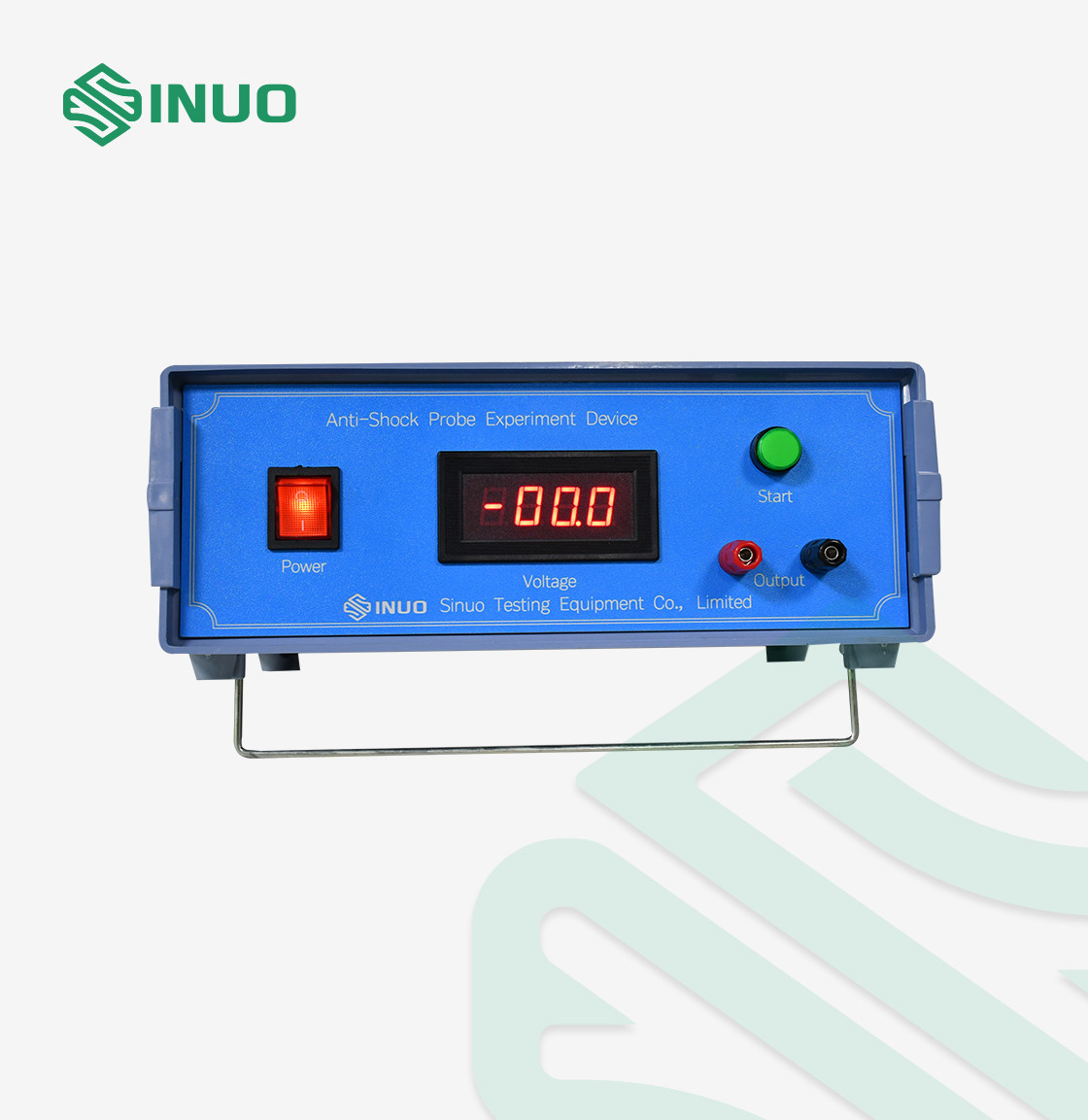

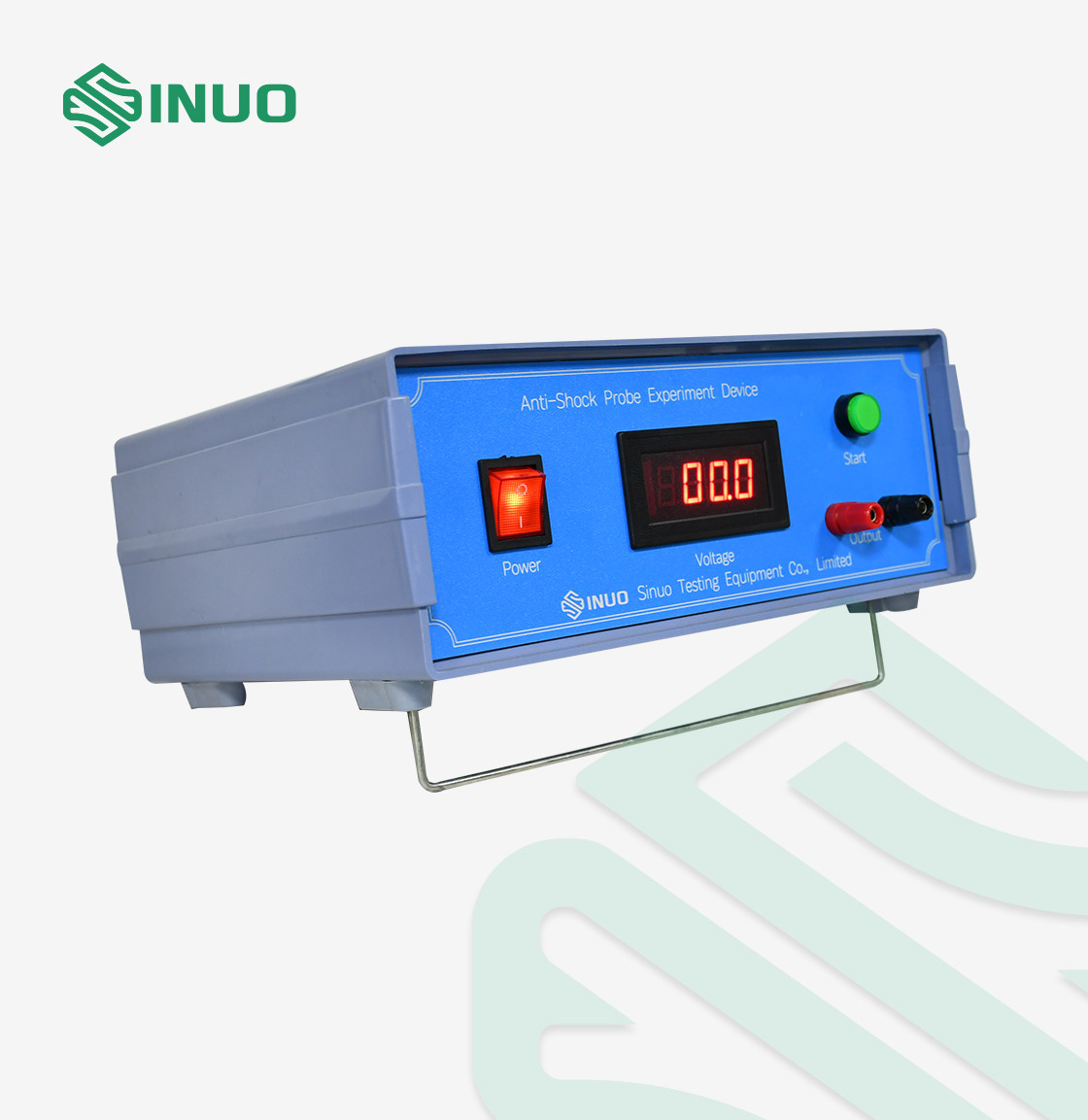

EV Connector Testing Equipment AC/DC Anti-Shock Probe Experiment Device

Complied Standards & Clauses

This equipment meets the requirements of IEC 62196-1:2022 clause 10.1, 10.2, 26.6, etc.

Equipment Overview

It is used in conjunction with the testing probe to ensure accuracy and convenience. Among the two output electrodes, the low potential (red) is connected to the live part of the electrical appliance, while the high potential is linked to the input terminal of the probe. At this point, activate the circuit and press the start button. Then, carefully use the probe to test any parts that may be electrified. If a voltage reading appears, it indicates that the tested part is live. After testing, press the reset button and safely disconnect the circuit.

Technical Parameters

Applied Standards	IEC 62196-1Ed.4CDV 2020
Applied Clauses	Clause 10.1, 26.6.
Working Voltage	AC 220V±5%, 50HZ±1%
Electrode output the testing voltage	AC 0-62V, DC 0~62V, can be switched
Relative Humidity	≤80%
Temperature Range	0-40℃
Use Requirements	No shaking and no corrosive gas
