IPX3 IPX4 Water Spray Test Oscillating Tube IP Waterproof Testing Machine
Complied Standards & Clauses
IPX3~4 oscillating tubes test system is designed and manufactured according to IEC60529:2013.
Product Overview
It is used for testing the IPX3/IPX4 waterproof level of electrical and electronic products.

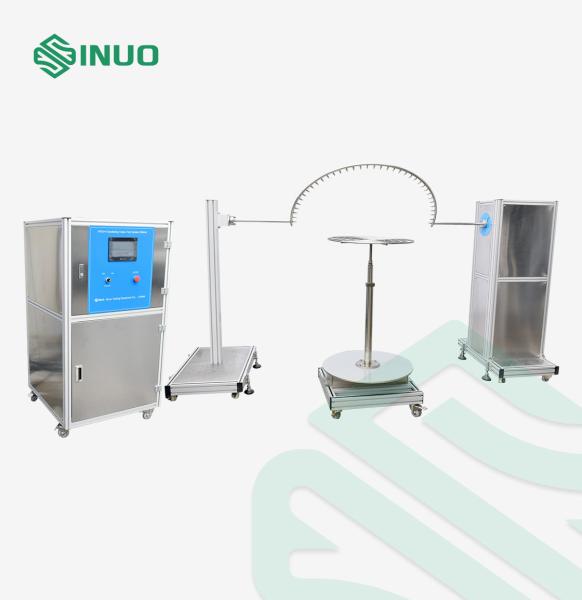

The complete set of IPX3~4 oscillating tubes test system is composed of one set of oscillating tubes swing device, one full set of oscillating tubes of R200mm,R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm, a turntable, and an intelligent water supply and control cabinet.

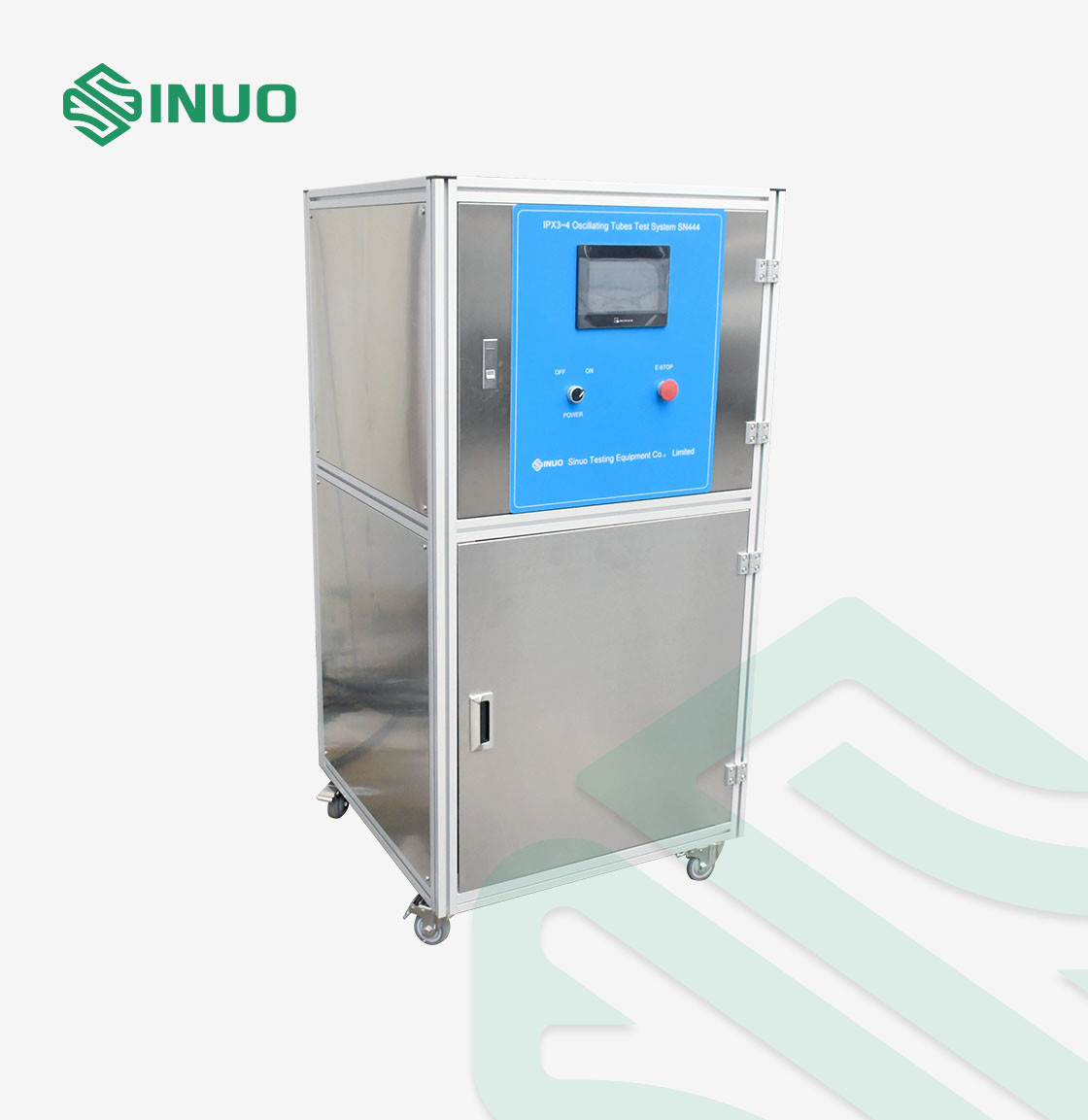

The intelligent water supply and control cabinet is composed of a water supply tank, a water pump, and a control system. The test water supply flow is controlled by a PLC, a frequency converter, and a flow meter.
Technical Parameters
| Item | parameters |
| Water supply | Water flow rate＞10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit |
| The size of the oscillating tube | Coming with R200mm,R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm oscillating tubes, made of stainless steel |
| Needle hole | Φ0.4mm |
| Included angle of two holes | IPX3:120°; IPX4:180° |

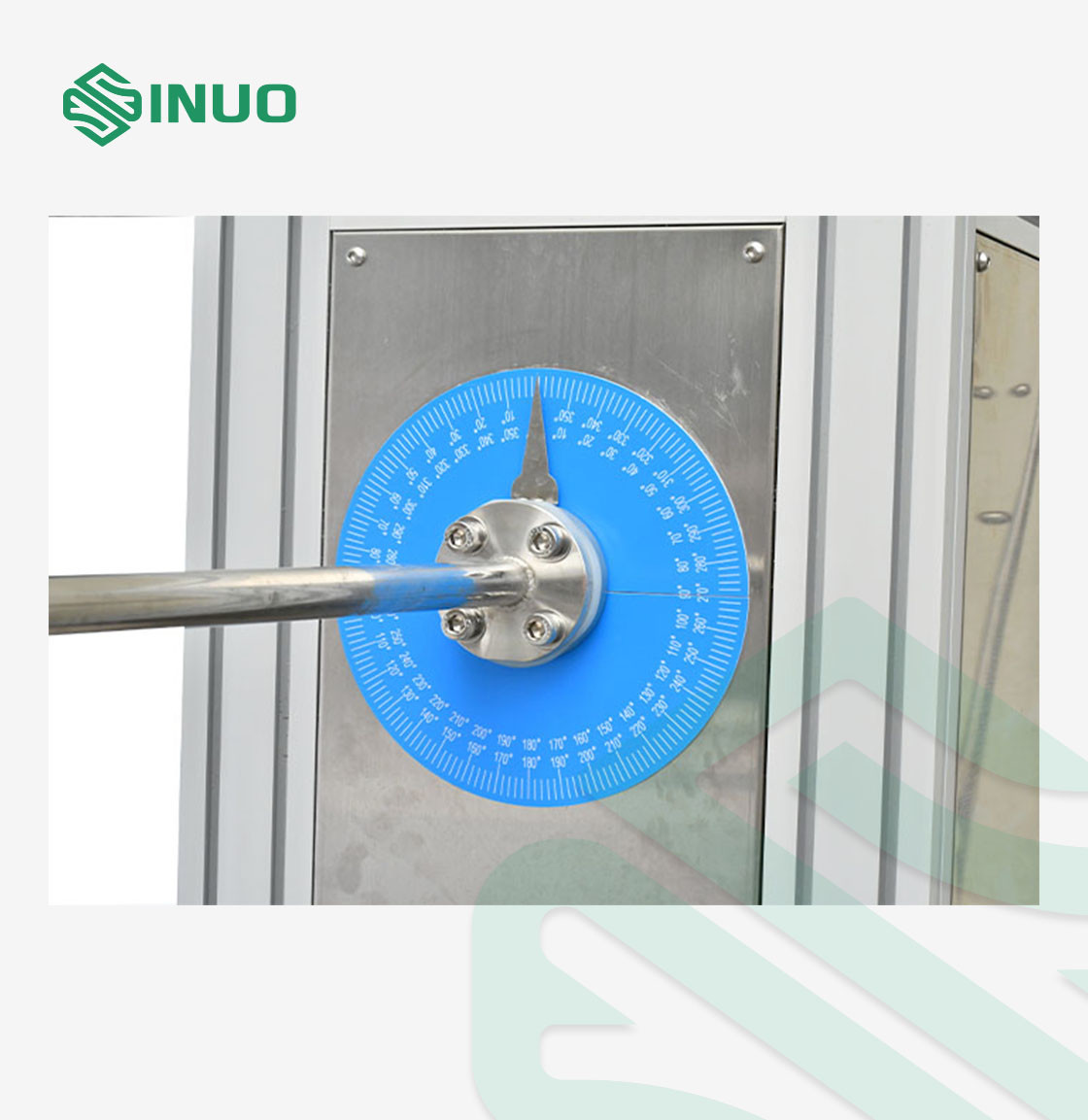

| Oscillating tube swing angle | Max. ±175° can be preset (Note: standard requires IPX3:120°; IPX4:360°, but due to there is turntable under oscillating tube during test, so 360° can not achieved during actual testing, if without turntable, then 360° can be achieved) |
| Raining speed | IPX3:4s/time (2×120°); IPX4:12s/time (2×360°); |
| Water flow | Can be set according to the size of the oscillating and the number of the pin holes (0.07 L/minX per hole) |
Details
|
|
IPX3 IPX4 Water Spray Test Oscillating Tube IP Waterproof Testing Machine Images
|
