Customizable Temperature and Humidity Walk-in Climate Test Chamber
Complied Standards & Clauses
Applied Standard:
IEC60068-2-1:2007 Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT
IEC60068-2-2:2007 Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT
IEC60068-2-78:2001 Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT
IEC60068-2-22:2005 Environmental Testing Part 2-22: Tests Test N: Change of temperature, IDT
Product Overview
Our Walk-in Constant Temperature and Humidity Test Chamber is designed for large-scale environmental simulation, offering a stable and controlled climate to test the reliability, stability, and performance of products under varying temperature and humidity conditions.
Ideal for industries such as electronics, automotive, aerospace, batteries, and pharmaceuticals, this chamber provides a spacious interior for testing oversized equipment or multiple samples simultaneously. With precise PLC-based control, uniform airflow distribution, and advanced insulation, it ensures accurate, repeatable test results.
Whether for high-temperature endurance, low-humidity performance, or long-term aging tests, this walk-in chamber is a reliable solution for demanding environmental testing applications.
Technical Parameters
| Effective volume | 18m³ |
| Inner box size | W3000 mm*H2000 mm*D3000mm |
| Outer box size | About W3800 mm*H2530 mm*D3690 mm(Excluding unit size) |
| Performance |
| Cooling method | Water cooling |
| Temperature range | 0°～ +100℃ |
| Humidity range | 20%-98%RH |
| Heating rate | 0°～ +100℃ About 2～3℃/min (no load, average) |
| Cooling rate | +100℃~0℃ About 0.7～1℃/min (no load, average) |
| Analysis accuracy | 0.01℃ |
| Temperature fluctuation | ±0.5℃ |
| Temperature deviation | ±2.0℃ |
| Humidity deviation | ≤±5.0%RH below 75%RH, ≤+2/-3%RH above 75%RH |
| Humidity fluctuation | ≤±2.0%R.H |
Details
|
|

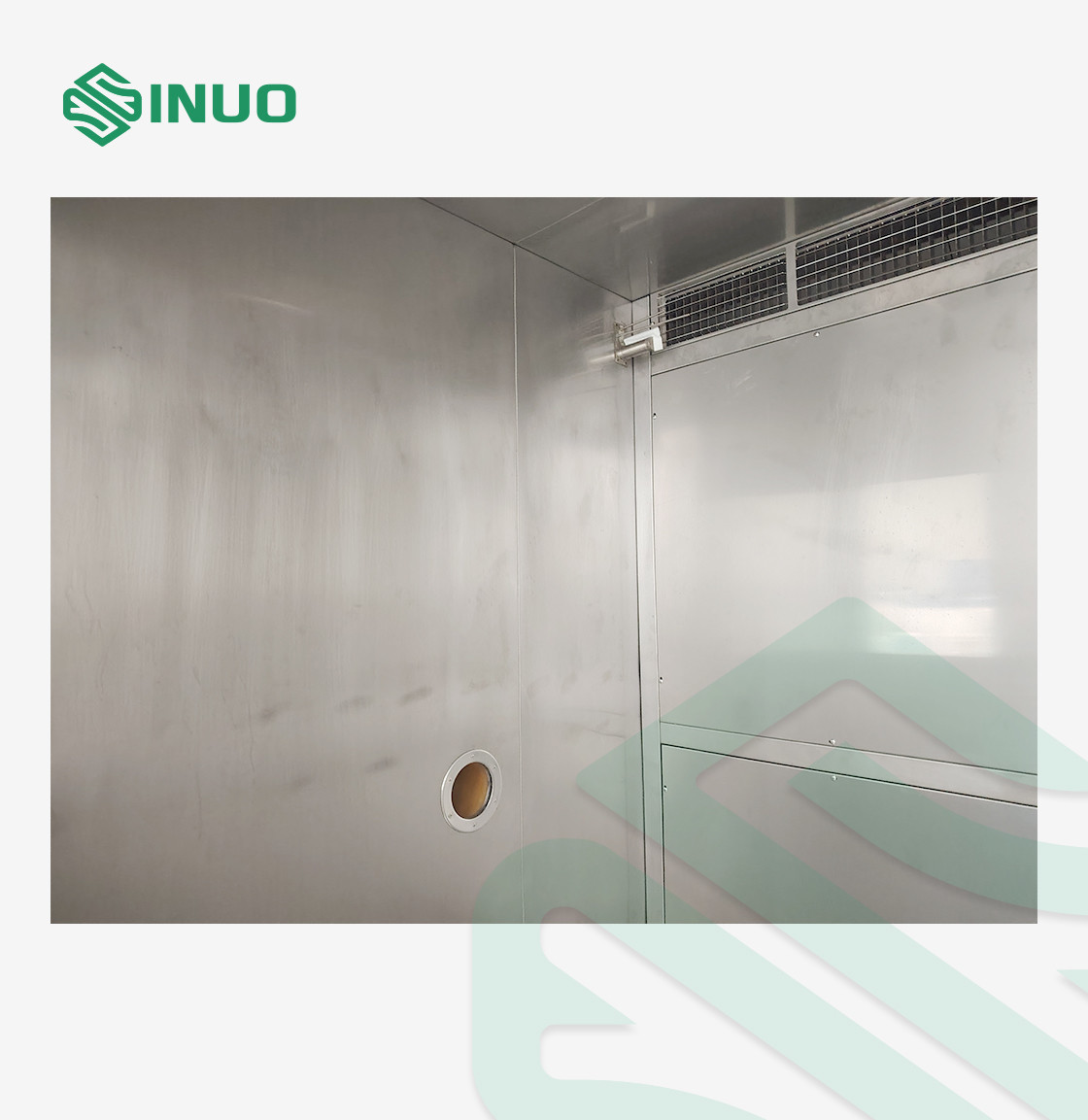

Customizable Temperature and Humidity Walk-in Climate Test Chamber Images
|
